How do I code a graph to show a vertical line input?

Questions
1

How do I code the graph component to show a vertical line the students type in the input component?

image.png1302Ă—576 29.2 KB

2

In the graph script:

function("f"):simpleFunction(expression.latex,"y")

and then make sure you put x=f(y) in the graph

Another way would be to make a number, say “A” from the expression numeric value and then graph x= A in the graph

3

Now, how can I take what they typed in the “expression” input component to show on a different screen…?

4

It works the same way, just put that script into whichever graph you need.

5

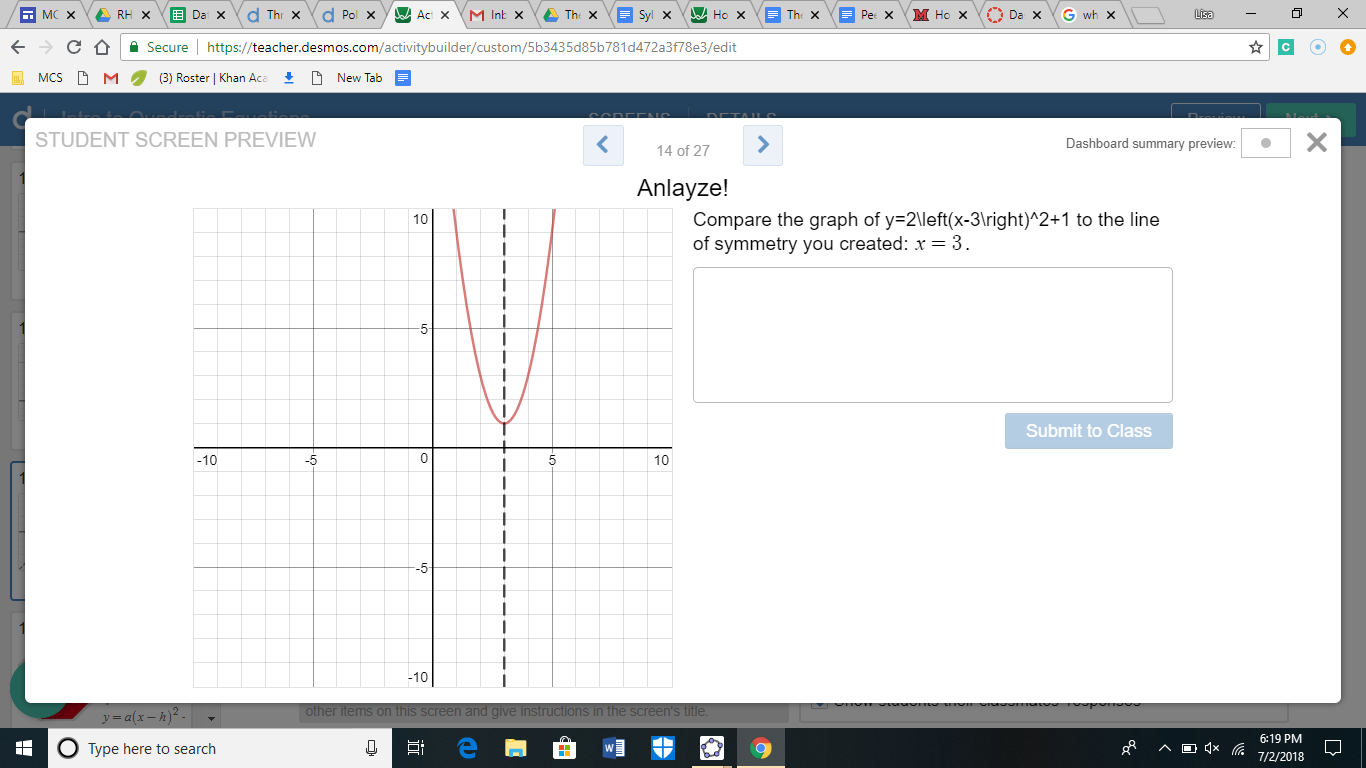

I’m confused…I’m trying to have what they entered in “expression” to appear in a note on the next screen. The students will then reflect on that equation in a input component.

image.png1366Ă—768 104 KB

6

Got it. If you want to display the expression as entered you would use the .latex source. Over all:

content:"`${expression.latex}`"

Don’t forget the backticks if you want to display as math

7

You are helping soooooooo much-thank you!!

Final question for tonight… how do I get the equation to appear in function format?

image1366Ă—768 102 KB

8

Same, put it in back ticks. If it still comes out funny you can always type it into the calculator and copy/paste into the note (still need back ticks). The only change is you need to double up on the slashes.

9

I’m still confused…
When I cut and past the equation from the graph…and then add and slashes…it’s still not showing up in function script.

image.png1366Ă—768 78.8 KB

image.png1366Ă—768 98.3 KB

10

Don’t forget the back ticks

11

Where do I place the back ticks…it doesn’t seem to be changing the quadratic into function script. (The back ticks are appearing)

12

You may have one too few or one too many. Here: format as math • Activity Builder by Desmos
